here simple way to convert a 96+ 4-pin MAF harness into a 6-pin to use with a newer style MAF like the popular 2002+ GT MAF that uses an integrated IAT

well first of all you need two additional female-quick slide connectors, like those that are already in the car's MAF connector...they look like this:



i bought an extra MAF harness from JamesD, just incase i messed something up, but everything went ok......the two female connectors that i got from my extra MAF harness are indentical to the ones that the IAT harness has in it:



unfortunately to remove them without completely dismantling the IAT harness is pretty difficult.......i had to literally cut open my old MAF harness to get the connectors to come out.........so i figure the same has to be done with the IAT harness........the good thing is that you wont need the IAT harness anymore :) ......once you pry the yellow plastic off the connectors with a small flat-blade screwdriver or similar, you can use a set of wire cutters to start carefully snipping off the plastic until you get to the connectors

then you can remove the yellow piece of plastic that partially obscures the connectors in the MAF harness by prying it off just like the IAT harness.....it should pop right out without hassle

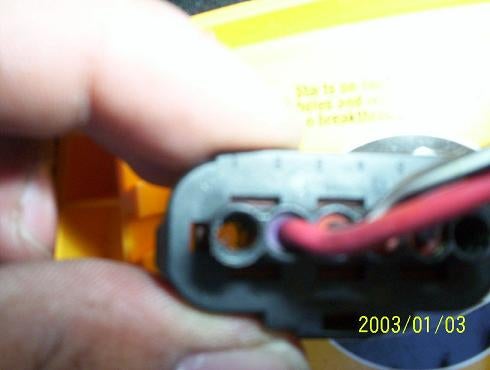

then simply drill out the two wire spots that are blocked off, with a drill bit......i used a 9/64", but anything close will do:



then you will use the two IAT connectors and put them thru the holes you just drilled.....mine are shown cut, because i had already tinkered with the wiring before.....if you are stock then your wires will be intact:



this is what it will look like with the connectors in place:

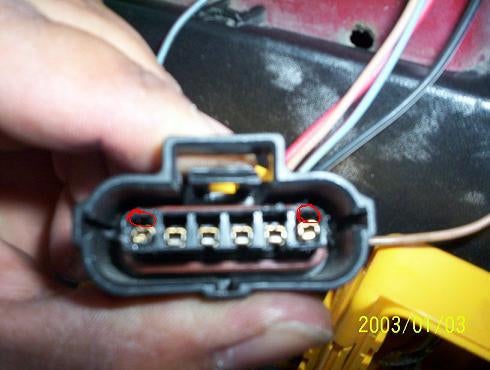

the new connectors will not lie perfectly where they should be, since there is no provision for them......i simply put a dab of RTV silicone (any adhesive will do) to the bottom part of the connector so they can line up with the orignal 4 connectors on the harness......you can simply jam a small object in the small space circled in red in the above picture so the connectors can stay in place while the adhesive dries

this is what it will look like once you replace the yellow plastic over the connectors, which will also help hold them in place when the harness is connected to the male tabs from the MAF

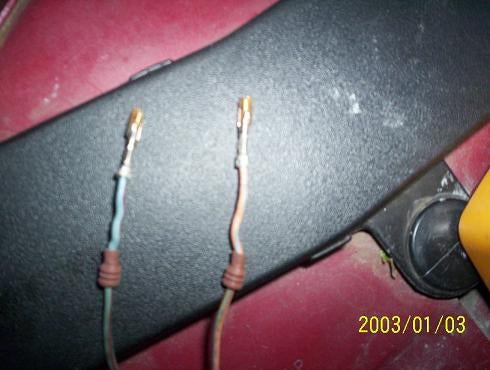

i had to solder short pieces of wire (you wont have to if stock) to connect the new wires on the MAF harness to the original IAT wires:

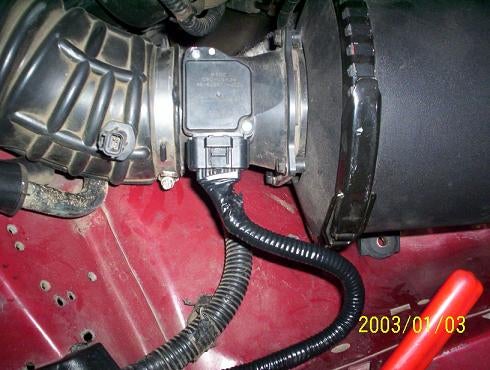

then after covering the solder joints with electrical tape, gathering all the 6 wires together and using split loom tubing with electrical tape over it, the final result was a factory looking 6-wire MAF assembly:



sorry for the blurry pic.....cheap digicams can't focus well at close distances i guess :D

hopefully you guys will find this info useful


·
